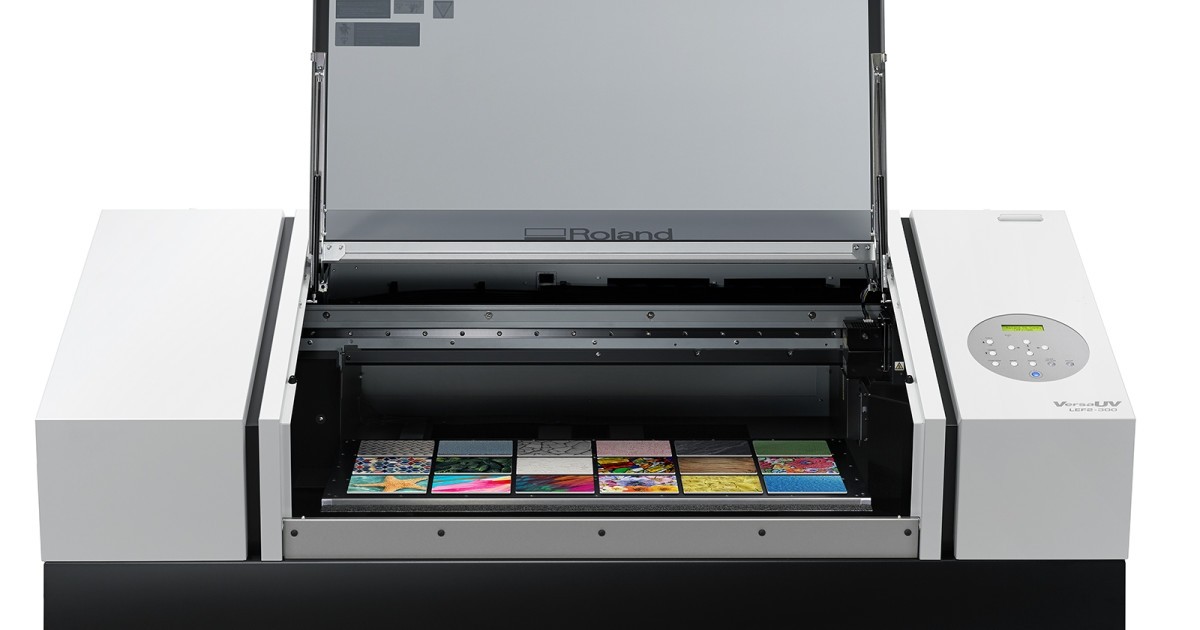

Roland VersaUV LEF-300

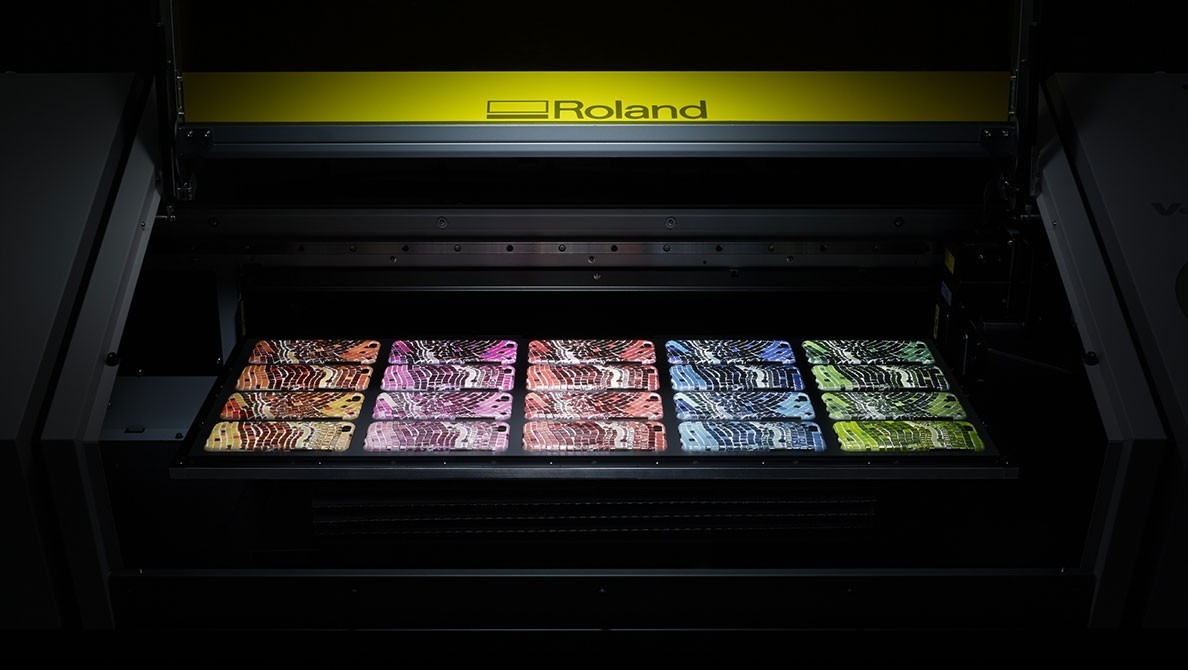

The LEF-300 is the latest and greatest of our VersaUV LEF series of flatbed printers. It offers the same brilliant color and direct printing capabilities on a vast array of materials, including three-dimensional items up to 3.94” thick, and now also enables printing larger items and higher quantities. Featuring a 30” print width, four print heads and two UV-LED lamps for faster curing, the LEF-300 significantly increases productivity and delivers stunning results.
Achieve High-Quality on a Wide Range of Materials
While a vacuum table makes it easy to hold thin materials in place, the LEF-300 is also able to accommodate items up to 3.94 inches in height. With the LEF-300, you can print on a wide variety of substrates such as PET, ABS, and polycarbonate, and soft materials such as TPU and leather, as well as three dimensional items, including pens, smartphone cases, signs, personalized awards, giftware, promotional items, laptop covers and more. The possibilities are virtually endless.
Technical specificationSpecification | LEF-300 | ||
Printing technology | Piezo inkjet | ||
Media | Dimensions | 800 mm (W) x 360 (D) x 100 mm (H) | |
Weight | Maximum 8 kg | ||
Printing area | 770 mm x 330 mm | ||
Ink | Type | ECO-UV 220ml, 500ml cartridge | |
Colours | 6 (cyan, magenta, yellow, black, white, gloss) | ||
Curing system | UV LED lamps | ||
Printinn resolution (dots per inch) | Maximum 1,440 dpi | ||
Accuracy | Error of less than ±0.3% of distance travelled, or ±0.3 mm (25°C) | ||
Interface | Ethernet Base 10/100 | ||
Power consumption | On | cca 178 W | |
Stand-by | cca 18 W | ||
Dimensions |
1560 (W) x 955 (D) x 576 (H) mm | ||
Weight | 149kg | ||
Enviroment | Power on | Operation temperature: 20-32°C, humidity 35-80% (no condensation) | |
Power off | Operation temperature: 5-45°C, humidity 20-80% (no condensation) |
Type of equipment | Personalisation UV printers Object printing I want to personify objects |
---|
